Oil canning can occur on larger face heights and wall widths; recommend 22 Ga.,.050" or .063" Aluminum for face height over 8" or wall width over 12”.
24 Ga. and .040” Aluminum covers available for wall sizes 3.5” to 24” ONLY
Unless otherwise noted, fabrication of miters and accessories are furnished standard utilizing a non-penetrating quicklock joint, then factory sealed watertight
Welded accessories require a minimum material thickness of .050" Aluminum
For non-90 miters, see separate print approval
Product should be installed per provided installation instructions
ANSI/SPRI/FM 4435/ES-1 test pressures up to 226 psf (Horizontal) and 391 psf (Vertical)
APPROVALS

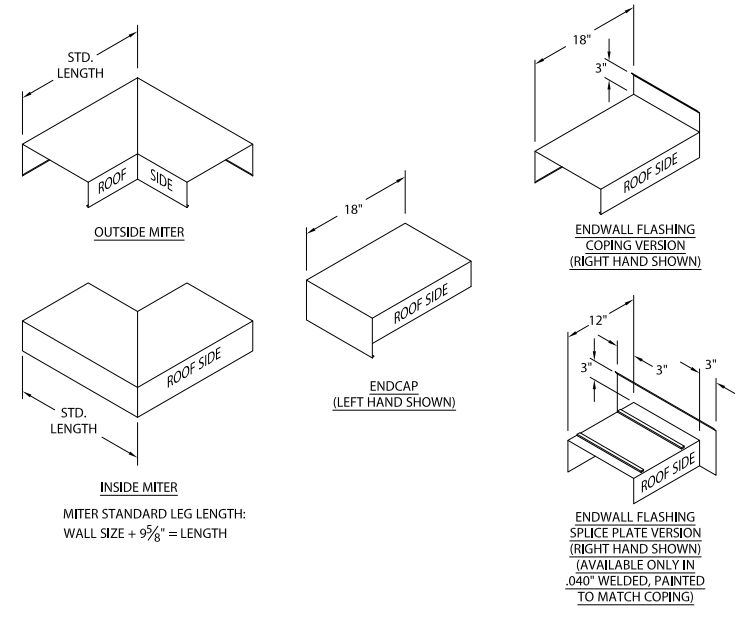

STANDARD ACCESSORIES
NOTES
Additional accessories are available including:
Transition Miters
Straight Transition Miters
“T” Miters
“Z” Miters
Step-up Miters
Peak / Valley Miters
Pilaster Caps
Radius Coping
Arched Coping
For additional accessory requirements, attach sketches or call manufacturer for assistance.
SHT# 2 of 2
DATE: 05/31/23
DRN BY: JJC
CKD BY: MM
DWG #: 45011-17230
REV: C
