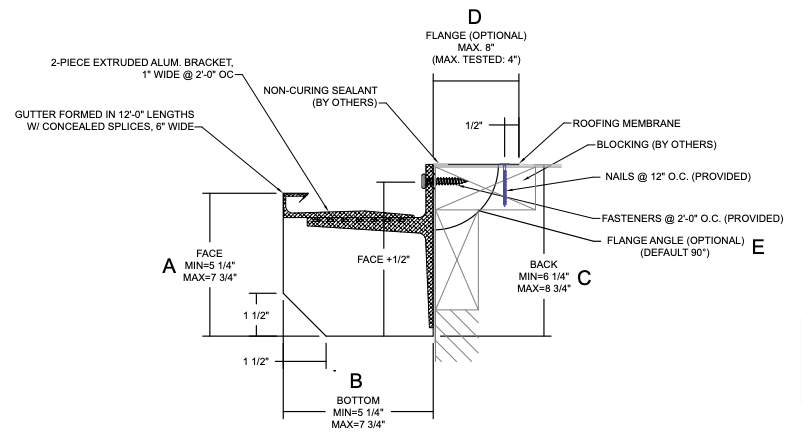

Maximum downspout dimension not to exceed "B" minus 2-1/16"
Roof flange is optional. If flange size is not provided, the gutter will not include a roof flange. If flange angle is not provided, the gutter will have a 90-degree flange.
Pop rivets provided
Unless otherwise noted, fabrication of miters and accessories are provided with a non- penetrating quicklock joint, then factory sealed watertight
Welded accessories require minimum material thickness of .050 aluminum.
For non-90 miters, see separate print approval
Product should be installed per provided installation instructions
ANSI/SPRI GT-1 Test Pressure up to 223 psf (Horizontal) and 136 psf (Vertical)
APPROVALS

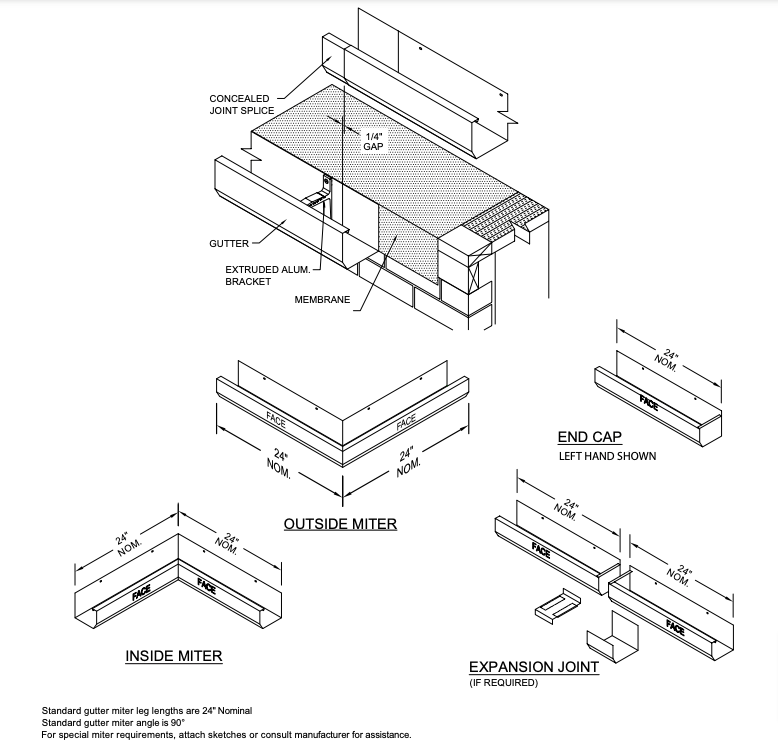

CHAMFER STANDARD ACCESSORIES
SHT# 2 of 2
DATE: 07/08/22
DRN BY: PL
CKD BY: KP
DWG #: 45012-39085
REV: A
