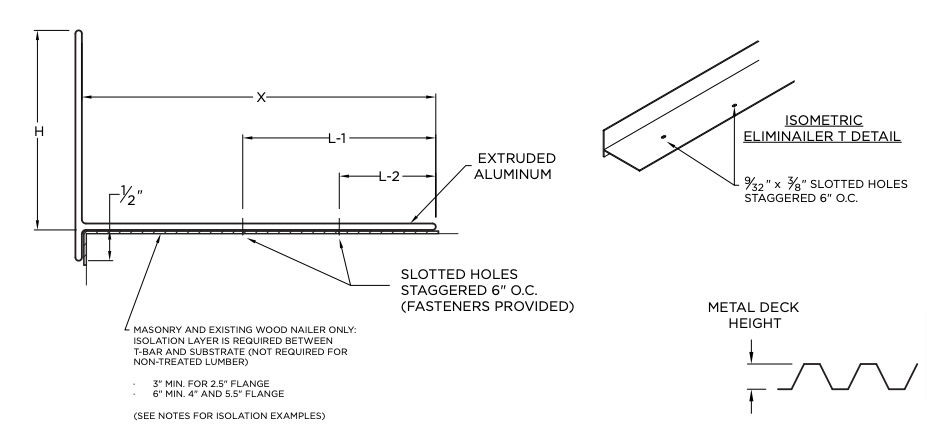

Isolation Tape Required with Masonry and Existing Wood Nailer (Treated Wood):
Must use isolation layer between T-Bar and substrate when used with masonry or treated wood.
Examples of isolation layers include rubber or plastic strips, peel and stick membrane, or Manufacturer's isolation tape
Metal Deck (22 ga. or 20 ga. Only):
Must provide Metal Deck Height.
Fasteners provided will be Metal Deck Height Plus 1" Min. Substrate must be 22 ga. or greater
Existing Wood Nailer:
1.5" and 3" Face Heights: 2.5" flange recommended because of standard nailer size
5.2" Face Height: Due to slotted hole location, a minimum of a 2x6 nailer must be used
Product should be installed per provided installation instructions
ANSI/SPRI/FM 4435/ES-1 Test Pressure up to 1200 psf.
APPROVALS
